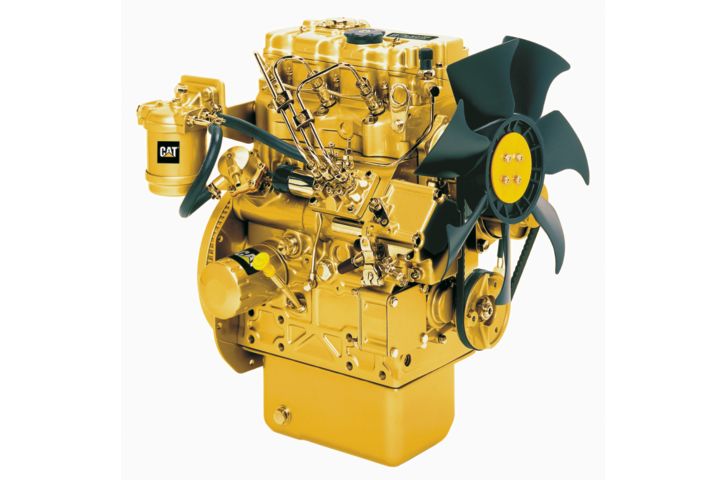

C1.1 Industrial Diesel Engines

Maximum Power
28.2 hp
21 kW
Maximum Torque
49.4 lb-ft @ 2400 rpm
67 Nm @ 2400 rpm
Rated Speed
2200-3400 rpm

Enquire Now

Opt-in: We would like to send you offers and news about Finning and Caterpillar products and services.
To join our mailing list please tick the box. You can unsubscribe at any time.

This field is required. Please enter a valid email address This must be a valid phone number. This must be a valid phone number.
Error verifying reCAPTCHA, please try again.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Inquire Now

A team member will get back to soon

Loading

Thank You!

Thank you! Someone will reach out to you shortly.

← Back to Form

Oops!

Sorry, there has been an issue submitting your form. Please refresh the page and try again.

If the issue persist, please contact our company through the phone number or email provided on the page.

← Back to Form

The C1.1 Industrial Diesel Engine is offered in ratings ranging from 13.7-21.0 bkW (18.4-28.2 bhp) @ 2200-3000 rpm. These ratings meet EPA Tier 4 Final emission standards. They are also available for Europe and, depending on applicable emission standards, may be introduced in other regulated and non-regulated areas. Industries and applications powered by C1.1 engines include: Aircraft Ground Support, Auxiliary Power Units, Bore/Drill Rigs, Chippers/Grinders, Compactors/Rollers, Construction, Forestry, General Industrial, Material Handling, Mining, Mobile Earthmoving Equipment, Mobile Light Towers, Pumps, Trenchers and Underground Mining Equipment.

«

»

Product specifications for C1.1 Industrial Diesel Engines

Cat?� C1.1 Industrial Diesel Engines deliver impressive performance throughout a wide speed range with exceptional power density. Their ultra-compact package size and extensive choice of options ensures these engines are ideal for a wide range of small, off road applications. Single-side servicing improves ease of maintenance and lowers overall owner operating costs. Industries and applications powered by C1.1 engines include: Aircraft Ground Support, Auxiliary Power Units, Bore/Drill Rigs, Chippers/Grinders, Compactors/Rollers, Construction, Forestry, General Industrial, Material Handling, Mining, Mobile Earthmoving Equipment, Mobile Light Towers, Pumps, Trenchers and Underground Mining Equipment. C1.1 engines, with ratings: 13.7-21 bkW (18.4-28 bhp) @ 2200-3400 rpm, meet EPA Tier 4 Interim equivalent emission standards. They are available using U.S. EPA Flexibility and for Europe and, depending on applicable emission standards, may be introduced in other regulated and non-regulated areas.

Power Rating
expand / collapse icon
Maximum Power 28.2 hp 21 kW
Maximum Torque 49.4 lb-ft @ 2400 rpm 67 Nm @ 2400 rpm
Rated Speed 2200-3400 rpm
Minimum Power 19.7 hp 14.7 kW

Reliable, Quiet and Durable Power

World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.

High Performance

Delivers impressive performance throughout a wide speed range while maintaining low operating costs.

Fuel Efficiency

Fuel consumption optimized to match operating cycles of a wide range of equipment and applications while maintaining low operating costs.

Broad Application Range

Industry leading range of factory configurable ratings and options for agricultural, material handling, construction, mining, aircraft ground support, and other industrial applications.

Package Size

Ultra-compact package size ensures ease of installation as well as exceptional power density.

Quality

Every Cat engine is manufactured to stringent quality standards in order to assure customer satisfaction.

World-class Product Support Offered Through Global Cat Dealer Network

  • Scheduled maintenance, including SOSSM sample
  • Customer Support Agreements (CSA)
  • Caterpillar Extended Service Coverage (ESC)
  • Superior dealer service network
  • Extended dealer service network through the Cat Industrial Service Distributor (ISD) program

World-class Product Support Offered Through Global Cat Dealer Network

  • Scheduled maintenance, including SOSSM sample
  • Customer Support Agreements (CSA)
  • Caterpillar Extended Service Coverage (ESC)
  • Superior dealer service network
  • Extended dealer service network through the Cat Industrial Service Distributor (ISD) program

C1.1 Standard Equipment

Air Inlet System
expand / collapse icon
  • Inlet manifold with choice of inlets.
