Screw Type
660: 28” - 56” reel diameter, Height: 13” min. to 27” max.
661 spindle is 62in long, 2 3/8” diameter rated for 5000 lbs
670: 46” - 96” reel diameter, Height: 21” min. to 54” max.
671 spindle is 76in long, 2 3/8” diameter rated for 5000 lbs
Capacity - each stand 2500 lbs, 5000 lbs in total
Ratchet Type
680: 58” - 90” reel diameter, Height: 28” min. to 45” max.
681 spindle is 100in long, 3 1/2” diameter rated for 7500 lbs
Capacity – each stand 3,750 lbs, 7500 lbs total
Heavy duty stands for large reel projects
Roller heads have self-lubricating bearings

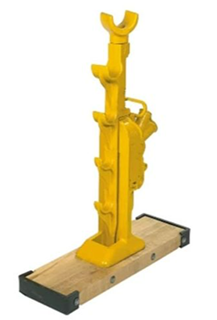

Simplex Jack | 321B
10 ton capacity for each stand
Reel diameter 20in min to 96in max
Stroke 12"
Adjustable spring links.
With five hooks; top fits up to 3 1/2 inch spindles; next hook down fits up to 3 inch spindles; and lowest three fit up to 2 3/8 inch spindles

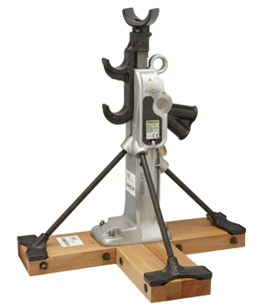

Simplex Jacks | A1029
10 ton capacity for each stand
Reel diameter 36in min to 84in max
Double-lever sockets for jacking in close quarters.
Multiple-tooth pawls for strength & safety.

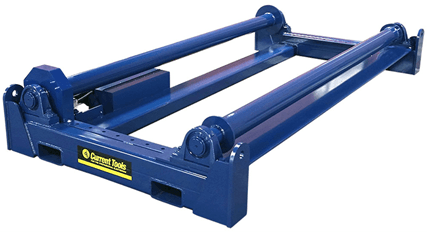

615 Reeler
8’ maximum reel width
12’ maximum reel diameter
122” wide x 19” height x 60 ¾” length
Weighs 2500lbs
One roller adjusts for various reel sizes
