CB1.7 Tandem Vibratory Rollers

Operating Weight
3538 lb
1605 kg
Standard Compaction Width
35 in
900 mm
Curb Clearance
16 in
403 mm

GET A QUOTE

Opt-in: We would like to send you offers and news about Finning and Caterpillar products and services.
To join our mailing list please tick the box. You can unsubscribe at any time.

This field is required. Please enter a valid email address This must be a valid phone number. This must be a valid phone number.
Error verifying reCAPTCHA, please try again.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Inquire Now

A team member will get back to soon

Loading

Thank You!

Thank you! Someone will reach out to you shortly.

← Back to Form

Oops!

Thank you! Someone will reach out to you shortly. To book a time that works best for your schedule visit our bookings page.

If the issue persist, please contact our company through the phone number or email provided on the page.

← Back to Form

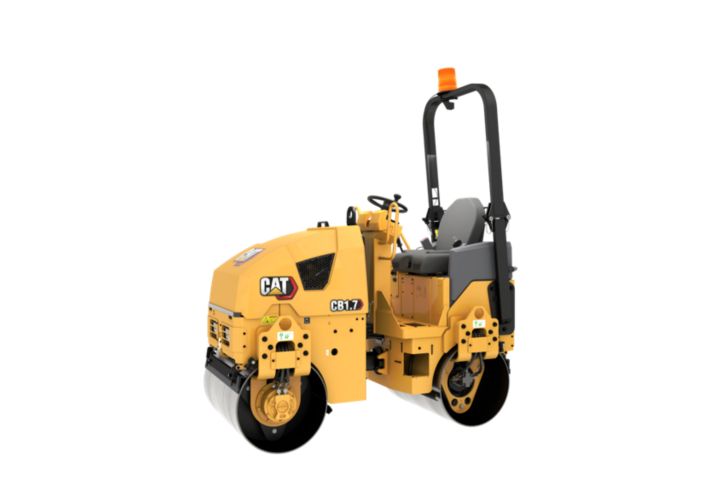

The CB1.7 is a 1.7 metric ton utility roller with 900 mm (35 in) tandem vibratory drums.

«

»

Product specifications for CB1.7 Tandem Vibratory Rollers

The CB1.7 is a 1.7 metric ton utility roller with 900 mm (35 in) tandem vibratory drums.

Weights
expand / collapse icon
Operating Weight 3538 lb 1605 kg

Simple Operation

  • Ergonomic operating environment with vandal protection
  • Spacious seating and easy access due to logically placed handles and lower platform height
  • Simple operation with mechanical propel and speed control levers

Efficient Performance

  • Compact size for excellent maneuverability in tight spaces
  • Excellent drum-edge visibility enhances control for better coverage and compaction results
  • Industry-leading compaction force delivers outstanding results
  • Industry-leading water tank capacity of 145 L (38 gal) sized for less fills throughout the day
  • Single-Point Lift for trench work and alternative transport options

Optimized Power

  • Powerful Cat® C1.1 engine; single source supplier for parts, service, and support
  • Cooling system capability of up to 49º C (120º F) for good performance in harsh environments
  • Quickly move around the job site with a fast travel speed of 8.6 kph (5.3 mph) for good mobility

Reliable and Easy to Maintain

  • 3 year/3000 hour vibratory drum service interval
  • Reliable triple filtration design for the water spray system
  • Easy access to engine service points
  • Robust hitch design easily supports single lift point option
  • Remote monitoring available with Product Link™ option

CB1.7 Standard Equipment

Operator Environment
expand / collapse icon
  • ROPS Folding
  • Operator Console w/ Emergency Stop, Simple Rocker Switches, and Machine Warning Indicator Lights
  • Dual 12-volt Power Outlet
  • Horn, Backup Alarm

CB1.7 Optional Equipment

Operator Environment
expand / collapse icon
  • Adjustable Suspension Seat w/ Operator Presence Switch
  • ROPS Fixed
