305 CR Mini Excavators

Net Power
45 hp
33.6 kW
Operating Weight
12688 lb
5754 kg
Dig Depth
144.5 in
3670 mm

Enquire Now

Opt-in: We would like to send you offers and news about Finning and Caterpillar products and services.
To join our mailing list please tick the box. You can unsubscribe at any time.

This field is required. Please enter a valid email address This must be a valid phone number. This must be a valid phone number.
Error verifying reCAPTCHA, please try again.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Inquire Now

A team member will get back to soon

Loading

Thank You!

Thank you! Someone will reach out to you shortly.

← Back to Form

Oops!

Sorry, there has been an issue submitting your form. Please refresh the page and try again.

If the issue persist, please contact our company through the phone number or email provided on the page.

← Back to Form

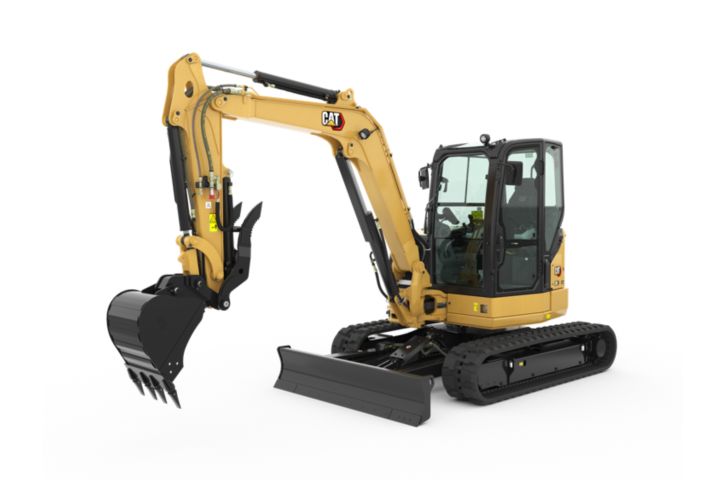

The Cat® 305 CR Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

«

»

Product specifications for 305 CR Mini Excavators

The Cat® 305 CR Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

Engine
expand / collapse icon
Net Power 45 hp 33.6 kW
Engine Model C1.7 Turbo
Displacement 101 in³ 1.662 l
Gross Power - 2,400 rpm - SAE J1995:2014 48.4 hp 36.1 kW
Stroke 3.9 in 100 mm
Bore 3.3 in 84 mm
Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC 45 hp 33.6 kW
Note Advertised power is tested per the specified standard in effect at the time of manufacture.
Emissions Meets U.S. EPA Tier 4 Final and EU Stage V emissions standards.

ALL DAY COMFORT

  • Choose either a canopy (not available in some regions) or a sealed and pressurized cab which can be equipped with air conditioning, adjustable wrist rests, and a suspension seat to help keep you working comfortably all day long.

EASY TO OPERATE

  • Controls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information. An advanced touchscreen monitor can also be equipped as an upgrade option.

STICK STEER TRAVEL MODE

  • Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls to move the machine and to operate the blade. The benefit of less effort and improved control is in your hands!

BIG PERFORMANCE IN A COMPACT DESIGN

  • Strong lift and dig performance helps you get the job done faster. The compact radius design lets you access and work in the tightest areas. Dozer float allows for easy clean up. An angle blade is also an option for finished grading and easier backfilling applications.

SAFETY ON THE JOB SITE

  • Your safety is our top priority. The Cat mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt with optional seat belt reminder system are just a couple of the safety features we’ve built into the machine.

SIMPLE SERVICE FOR LESS DOWNTIME

  • Maintenance is quick and easy on the Cat mini excavator. Routine check points are easy to access at ground level through the side doors.

LOWER OPERATING COSTS

  • Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat mini excavator was designed with reducing your operating costs in mind.

SUSTAINABILITY

  • The Cat® C1.7 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
  • Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
  • Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
  • Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
  • Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
  • The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
  • Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
  • Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
  • Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)
  • Cat Grade with advanced 2D and 3D technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy. (if equipped).
*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

305 CR Standard Equipment

GUARDING
expand / collapse icon
  • ROPS ISO 12117-2:2008
  • Top Guard ISO 10262:1998 (Level I)

305 CR Optional Equipment

OPERATOR ENVIRONMENT
expand / collapse icon
  • Cab with Air Conditioning
  • Cab with Heater
  • No Travel Pedals and Hand Levers (optional in some regions)
  • Machine Security – Push to Start with Key Fob/Pass Code
  • LED Front Lights
  • LED Front and Rear Lights
  • LED Boom Light
  • Mirrors, Left, Right and Rear
  • Camera
  • Radio – Bluetooth®, Auxiliary, Microphone, USB (charging only) (Cab only)
  • Next Generation Advanced Monitor
    – Touch Screen
    – Site Reference System
    – High Definition Camera Capable (IP68 and IP69K)
    – Numeric Security Code
  • Seat Belt Reminder System
  • Cat Grade with 3D
  • Cat Grade with Advanced 2D
