DE50 GC (50 Hz) Diesel Generator Sets

Maximum Rating
50.0 kVA
Minimum Rating
50.0 kVA
Emissions/Fuel Strategy
Non Regulated

Enquire Now

Opt-in: We would like to send you offers and news about Finning and Caterpillar products and services.
To join our mailing list please tick the box. You can unsubscribe at any time.

This field is required. Please enter a valid email address This must be a valid phone number. This must be a valid phone number.
Error verifying reCAPTCHA, please try again.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Inquire Now

A team member will get back to soon

Loading

Thank You!

Thank you! Someone will reach out to you shortly.

← Back to Form

Oops!

Sorry, there has been an issue submitting your form. Please refresh the page and try again.

If the issue persist, please contact our company through the phone number or email provided on the page.

← Back to Form

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

«

»

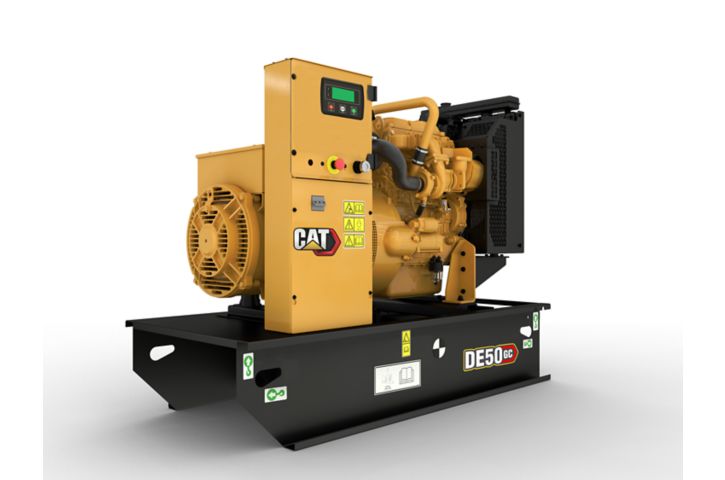

Product specifications for DE50 GC (50 Hz) Diesel Generator Sets

Producing 50 kVA of reliable power at 50 Hz, our DE50 GC diesel generator set is designed to meet ISO 8528-5 transient response requirements.

Generator Set Specifications
expand / collapse icon
Maximum Rating 50.0 kVA
Minimum Rating 50.0 kVA
Emissions/Fuel Strategy Non Regulated
Voltage 380 to 415 Volts
Frequency 50 Hz
Speed 1500 rpm
Duty Cycle Standby

Cat Generator Set Package

  • Cat generator set packages have been fully prototype tested
  • Accepts 100% block load in one step and meets NFPA 110 loading requirements
  • Conform to ISO 8528-5 steady state and transient response requirements

Cat Diesel Engine

  • Reliable, rugged, durable design
  • Field-proven in thousands of applications worldwide
  • Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight

A-Frame Alternator

  • Superior motor starting capability minimizes need for oversizing alternator
  • Designed to match performance and output characteristics of Cat diesel engines
  • Robust Class H insulation

GCCP 1.1 Control Panel

  • User-friendly interface and navigation
  • Scalable system to meet a wide range of installation requirement
  • Expansion modules and site-specific programming for specific customer requirements

Cooling System

  • Designed to operate in standard ambient temperatures up to 55°C (131°F)
  • Contact your Cat Dealer for specific ambient and altitude capabilities

Certifications

  • CE Certification Available
  • CIS Certification Available

One Safe Source

  • Components used in the generator set are selected based on seamless design integration to provide the optimum performance
  • The generator set is fully assembled at a Caterpillar facility following our quality guidelines
  • Each generator set package is tested before leaving the Caterpillar facility
  • Cat product support, including dealer service, parts and warranty covers the entire Cat power system

Worldwide Product Support

  • Cat dealers have over 1,800 dealer branch stores operating in 200 countries
  • Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements

DE50 GC (50 Hz) Standard Equipment

Engine
expand / collapse icon
  • C3.3, Inline 3 cylinder, 4 stroke diesel

DE50 GC (50 Hz) Optional Equipment

Certification
expand / collapse icon
  • Certificate of Conformance
  • Australia, CIS, Gulf Certification
